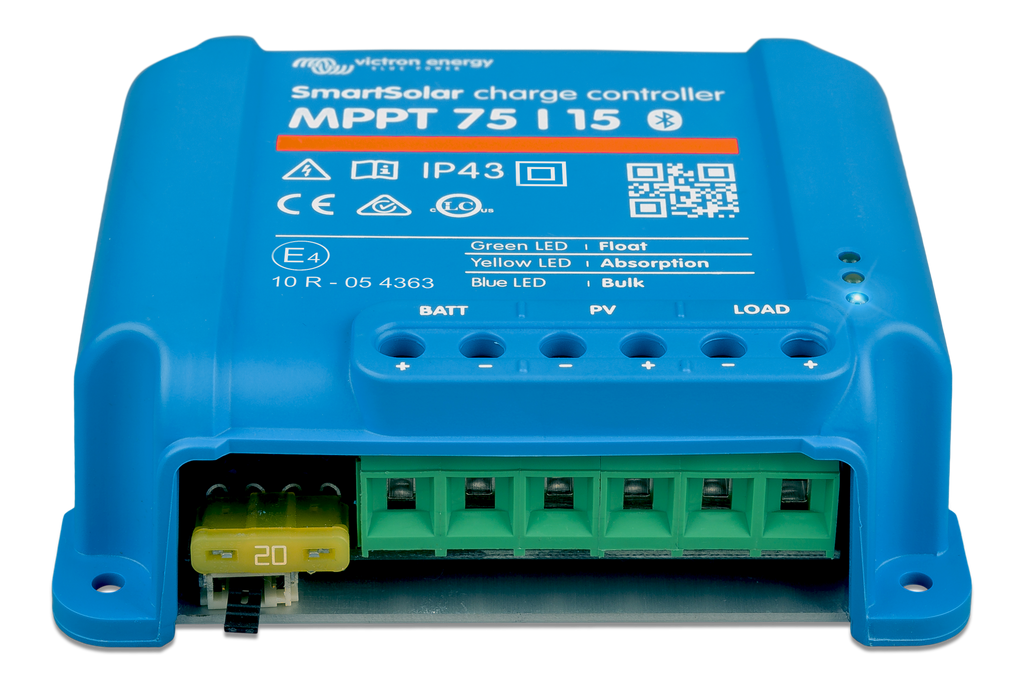

Victron SmartSolar MPPT 75/15 Solar Charge Controller (Bluetooth)
£60.00
Skip to product information
Victron SmartSolar MPPT 75/15 Solar Charge Controller (Bluetooth)
£60.00
A popular choice for a single roof panel. The SmartSolar MPPT 75/15 handles up to 220W of solar at 12V, with Bluetooth monitoring and Victron's proven charging.
Key features
- 15A charging, up to 220W panels at 12V (440W at 24V)
- Ultra-fast MPPT, up to 98% efficient
- Built-in Bluetooth for the VictronConnect app
- Adjustable, multi-stage adaptive charging for lead-acid and lithium
- 15A load output with battery-protect function
- VE.Direct port; 5-year Victron warranty
Specifications
| Part number | SCC075015060R |
| System voltage | 12/24V auto |
| Max. charge current | 15A |
| Max. PV power | 220W (12V) / 440W (24V) |
| Max. PV open-circuit voltage | 75V |
| Max. PV short-circuit current | 15A |
| Peak efficiency | 98% |
| Load output | 15A |
| Self consumption | 25mA |
| Max. cable size | 6mm² |
| Operating temperature | -30 to +60°C |
| Dimensions | 100 × 113 × 40mm |
