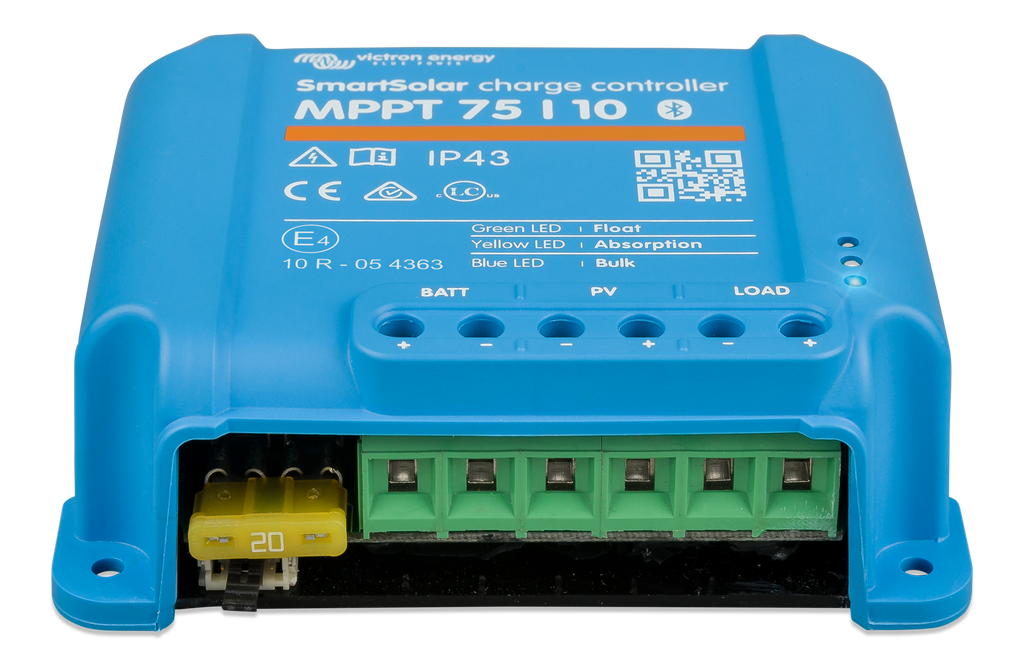

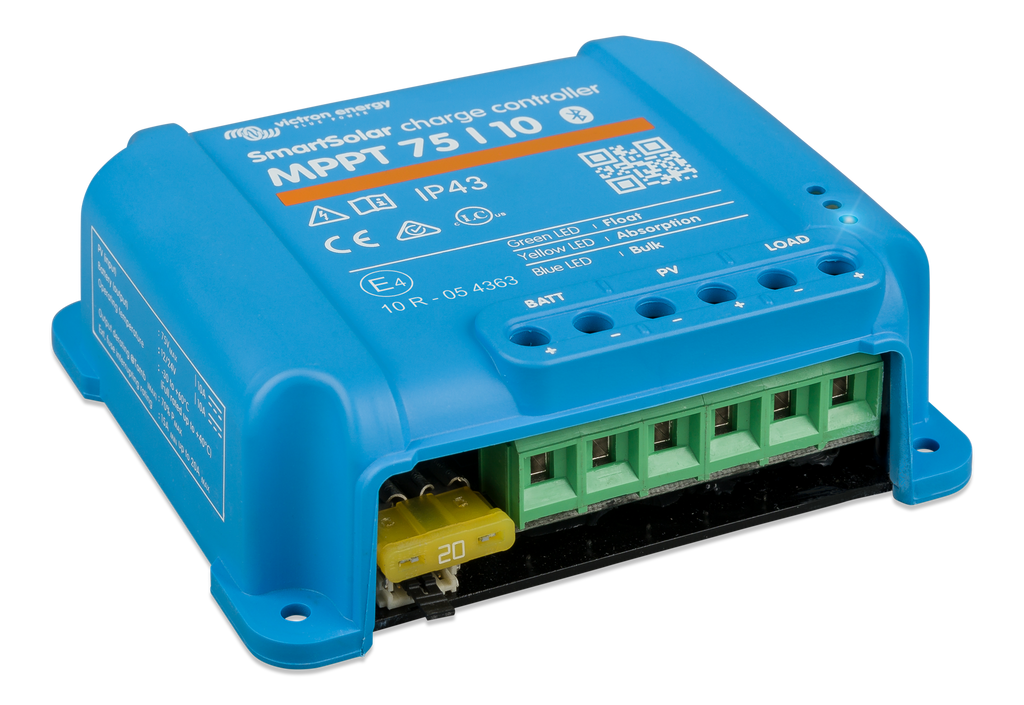

Victron SmartSolar MPPT 75/10 Solar Charge Controller (Bluetooth)
£55.00
A compact, great-value solar controller for a single small panel. The SmartSolar MPPT 75/10 gets the most out of up to 145W of solar at 12V, with Bluetooth monitoring from your phone.
Key features
- 10A charging, up to 145W panels at 12V (290W at 24V)
- Ultra-fast MPPT, up to 98% efficient
- Built-in Bluetooth for setup and live data in the VictronConnect app
- Adjustable, multi-stage adaptive charging for lead-acid and lithium
- 15A load output with battery-protect function
- VE.Direct port; 5-year Victron warranty
Specifications
| Part number | SCC075010060R |
| System voltage | 12/24V auto |
| Max. charge current | 10A |
| Max. PV power | 145W (12V) / 290W (24V) |
| Max. PV open-circuit voltage | 75V |
| Max. PV short-circuit current | 13A |
| Peak efficiency | 98% |
| Load output | 15A |
| Self consumption | 25mA |
| Max. cable size | 6mm² |
| Operating temperature | -30 to +60°C |
| Dimensions | 100 × 113 × 40mm |
