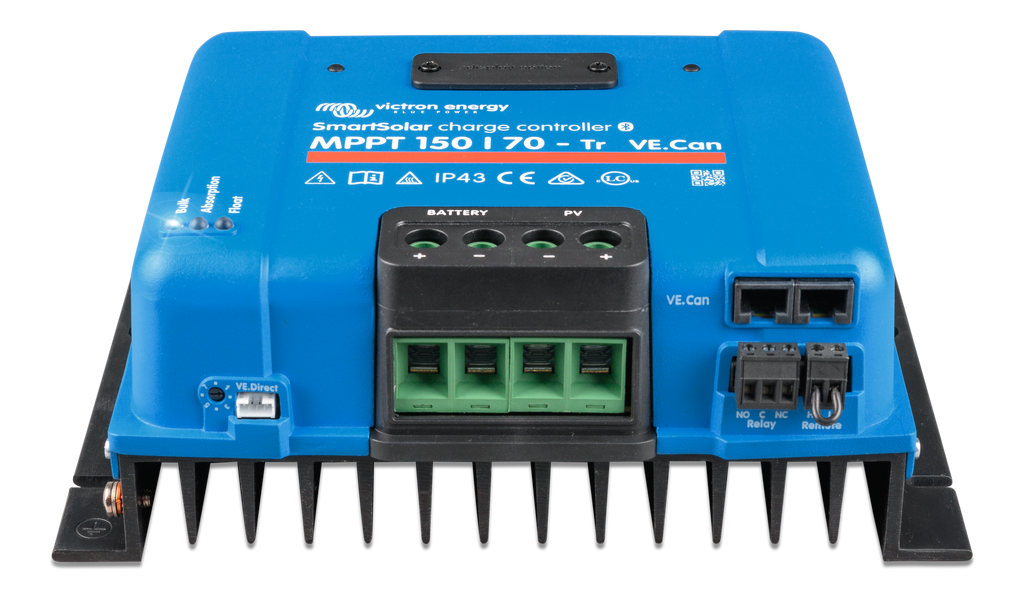

Victron SmartSolar MPPT 150/70 VE.Can Solar Charge Controller
Tr (screw terminals)
£349.00
Skip to product information
Victron SmartSolar MPPT 150/70 VE.Can Solar Charge Controller
£349.00
A professional-grade controller for large arrays. The SmartSolar MPPT 150/70 VE.Can delivers up to 70A and 1000W at 12V (4000W at 48V), with Bluetooth, VE.Can networking and a programmable relay.
Key features
- 70A charging, up to 1000W at 12V / 2000W at 24V / 4000W at 48V
- 150V PV input; 12/24/48V auto (36V via software)
- Over 98% efficient with no cooling fan
- Built-in Bluetooth plus VE.Can and VE.Direct for GX devices
- Synchronised parallel charging: up to 10 units via Bluetooth, 25 via VE.Can
- Programmable relay and charge algorithm; lithium BMS wake-up

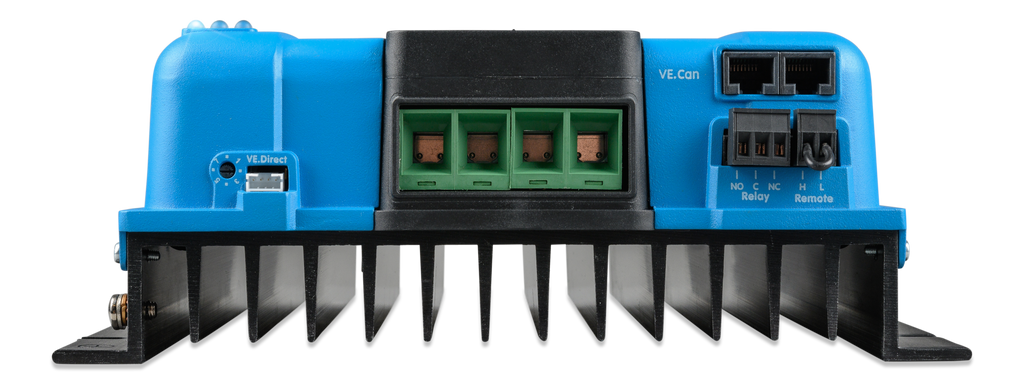

- Optional plug-in display; choose screw terminals (Tr) or MC4 connectors
Specifications
| Part numbers | SCC115070411 (Tr) / SCC115070511 (MC4) |
| System voltage | 12/24/36/48V |
| Max. charge current | 70A |
| Max. PV power | 1000W (12V) / 2000W (24V) / 3000W (36V) / 4000W (48V) |
| Max. PV open-circuit voltage | 150V |
| Max. PV short-circuit current | 50A (max. 30A per MC4 pair) |
| Peak efficiency | 98% |
| Self consumption | <35mA |
| Max. cable size | 35mm² |
| Protection | IP43 electronics / IP22 connection area |
| Operating temperature | -30 to +60°C (full output to 40°C) |
| Dimensions | Tr: 250 × 185 × 95mm; MC4: 250 × 215 × 95mm |
