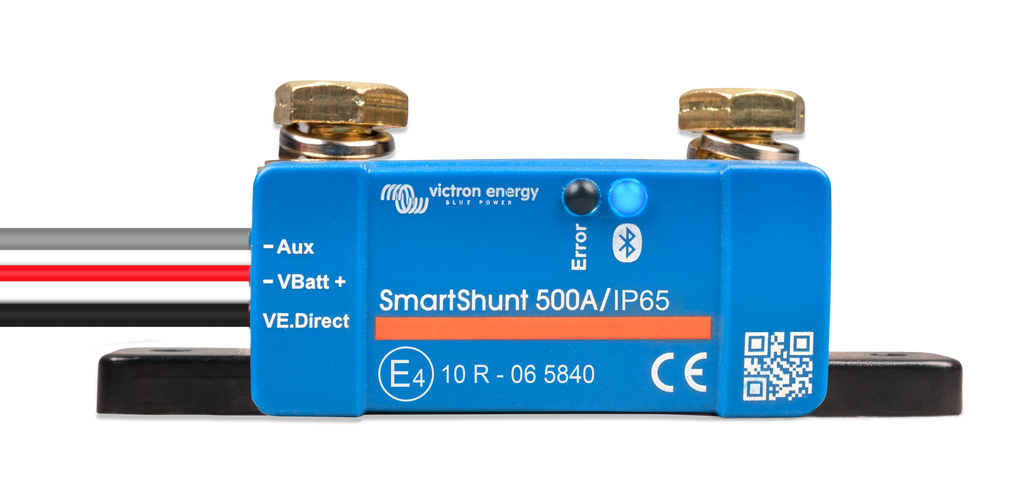

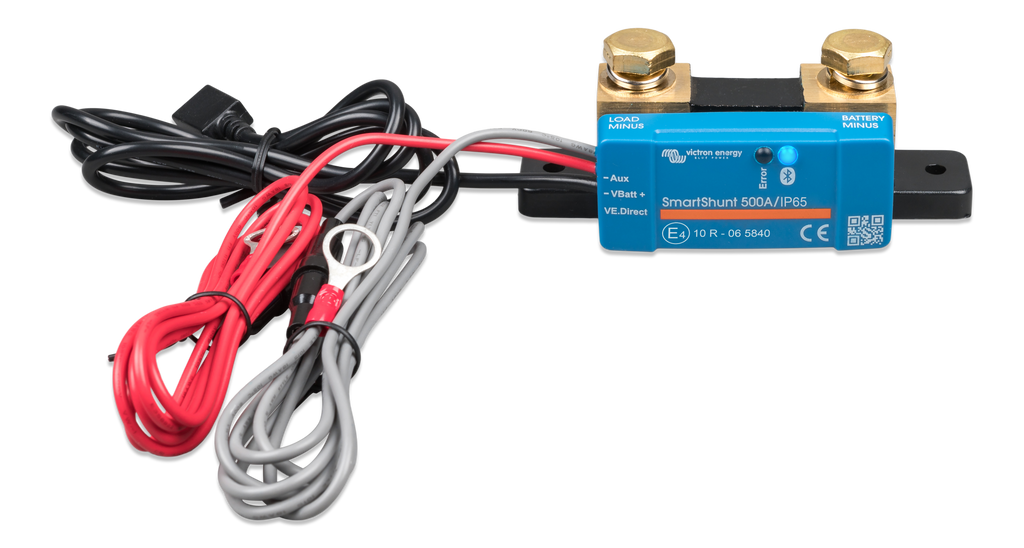

Victron SmartShunt IP65 500A Battery Monitor (Bluetooth)
£89.00
Skip to product information
Victron SmartShunt IP65 500A Battery Monitor (Bluetooth)
£89.00
Accurate battery monitoring for bigger systems. The Victron SmartShunt IP65 500A handles the higher currents of larger inverters and lithium banks, and shows everything on your phone over Bluetooth.
Key features
- Shows voltage, current, power, Ah used, state of charge, time-to-go and total kWh in/out
- Built-in Bluetooth for the VictronConnect app
- Auto re-calibrates each time the battery is fully charged
- Monitors a second battery, mid-point voltage or temperature (optional sensor)
- VE.Direct port to connect to a Cerbo GX
- 12, 24 and 48V systems (max. 70V); IP65; 5-year warranty
Specifications
| Part number | SHU065150050 |
| Max. current | 500A |
| Supply voltage | 6.5–70V DC |
| Current draw | <1mA |
| Battery capacity setting | 1–9999Ah |
| Operating temperature | -40 to +50°C |
| Protection | IP65 |
| Terminal size | M10 |

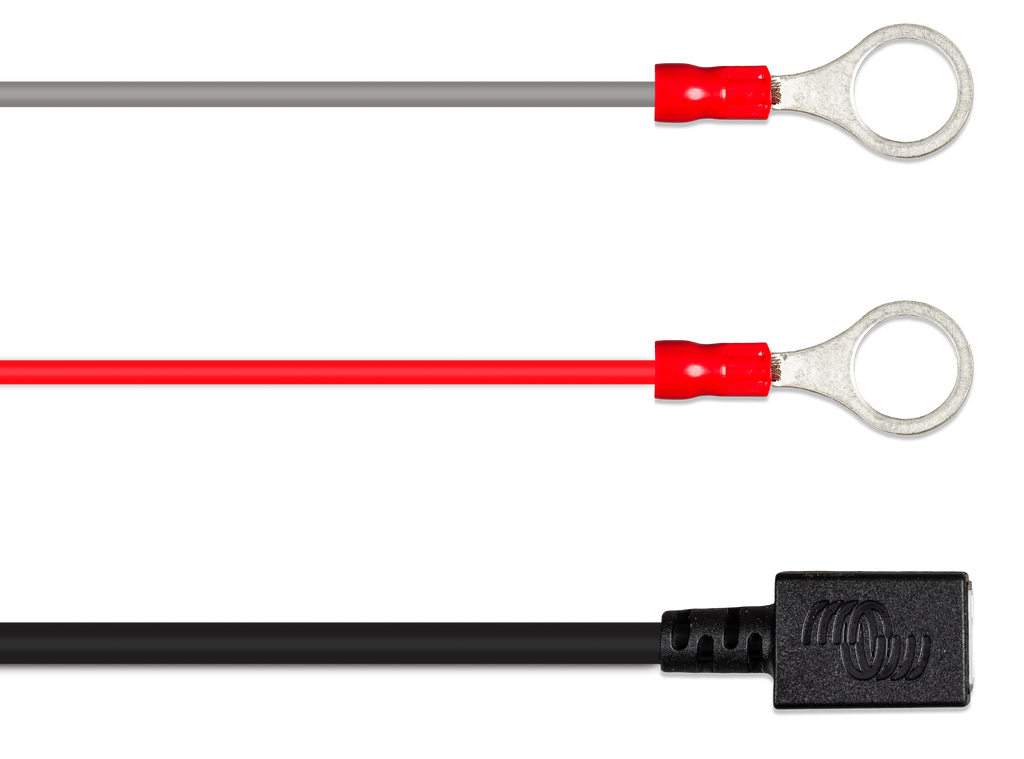

| Cable length | 1.5m |
| Dimensions | 120 × 54 × 46mm |
