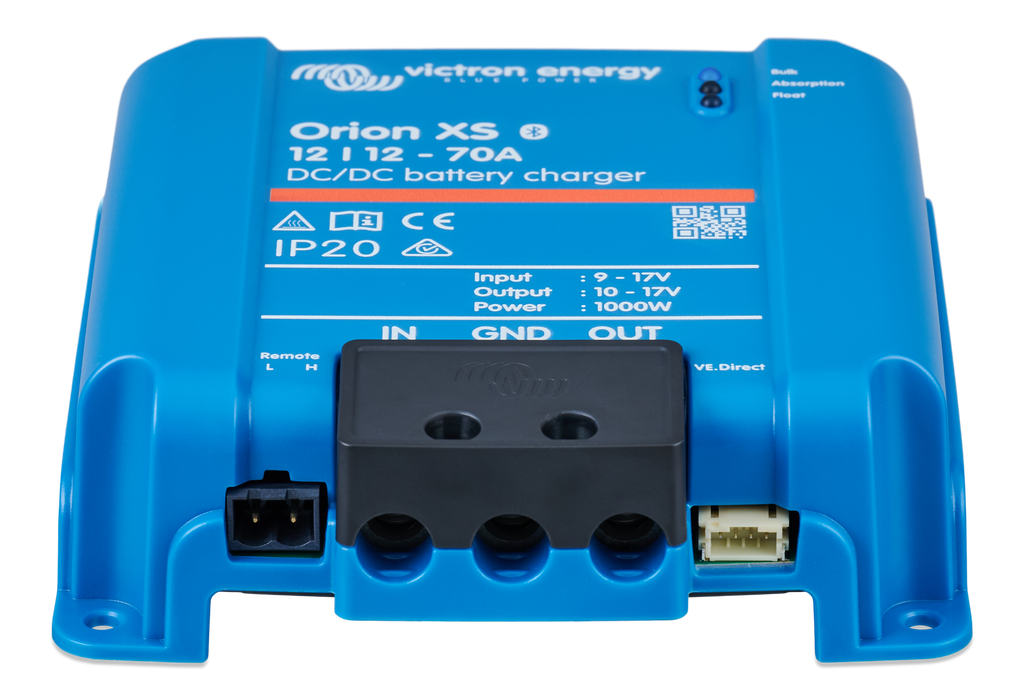

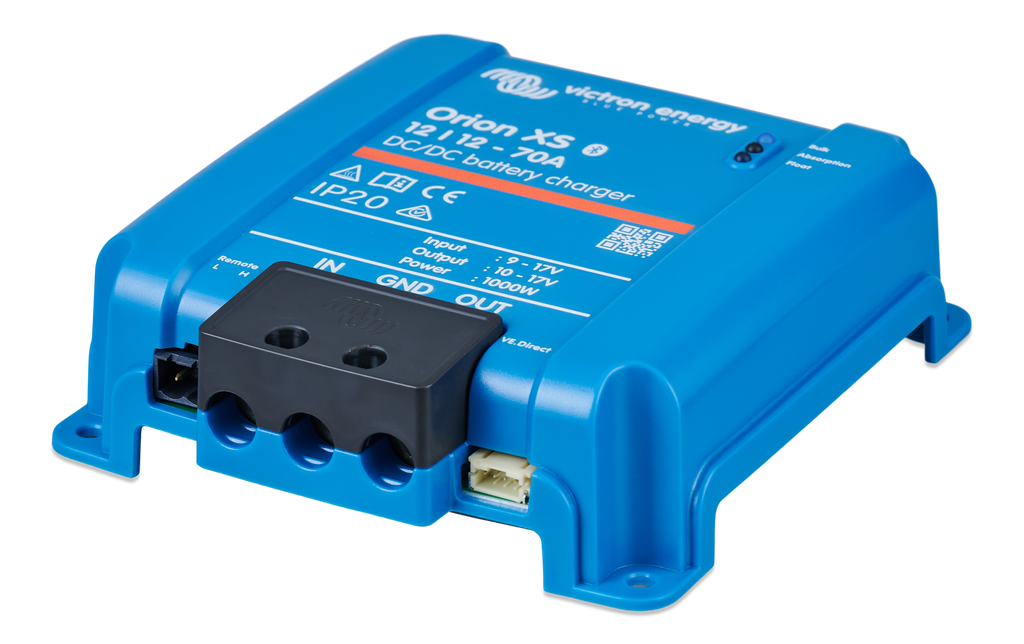

Victron Orion XS 12/12-70A DC-DC Battery Charger
£299.00
Skip to product information
Victron Orion XS 12/12-70A DC-DC Battery Charger
£299.00
Maximum alternator charging in a tiny package. The Orion XS 12/12-70A pushes up to 70A (1000W) into your leisure battery while you drive, ideal for big lithium banks.
Key features
- Adjustable output up to 70A (1000W) at 40°C
- 98.5% efficient: no fan needed
- Smart (Euro 5/6) and standard alternator compatible
- Adaptive 4-stage charging with presets for lithium and lead-acid, or fully custom
- Bluetooth, VE.Smart Networking and VE.Direct (including DVCC) for full Victron system integration
- Can also run as a fixed 10–17V power supply; units can be paralleled
- 5-year Victron warranty
Specifications
| Part number | ORI121221040 |
| Input voltage | 9–17V |
| Output voltage range | 10–17V |
| Current setting | 1–70A |
| Continuous power at 40°C | 1000W |
| Max. efficiency | 98.5% |
| Operating temperature | -20 to +60°C (derates above 40°C) |
| Connections | Screw terminals, max. 21mm² |
| Protection | IP20 |
| Dimensions | 137.3 × 123.1 × 40mm |
| Weight | 0.34kg |
IP20 rated, so mount it in a dry, protected location inside the vehicle.
