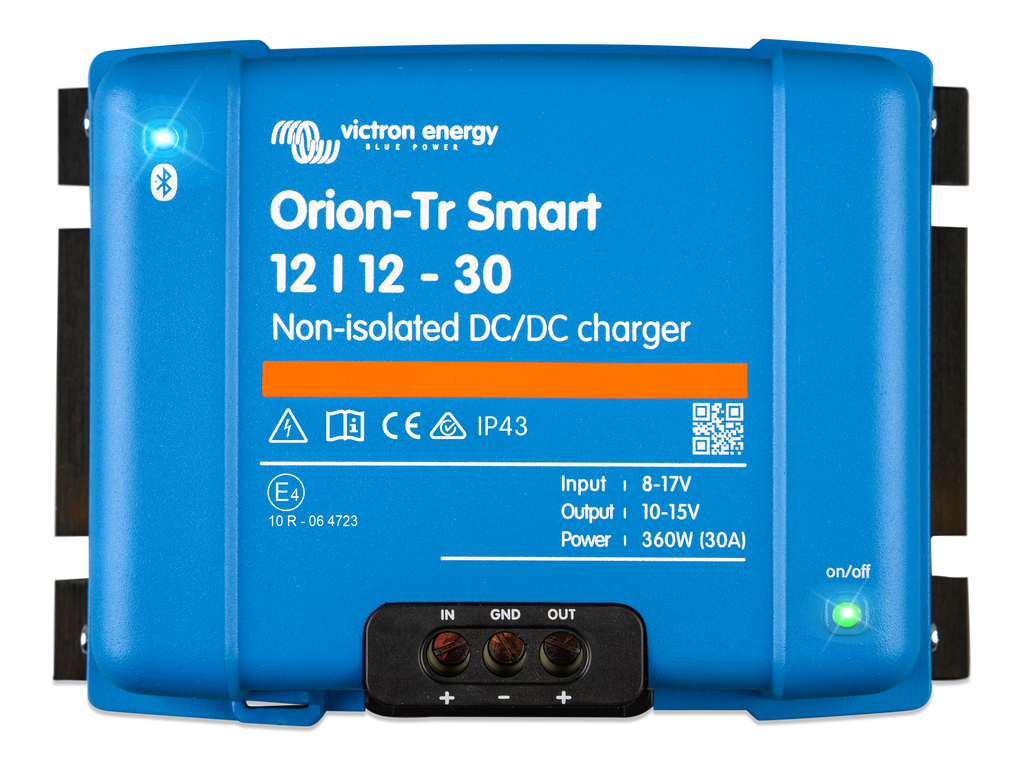

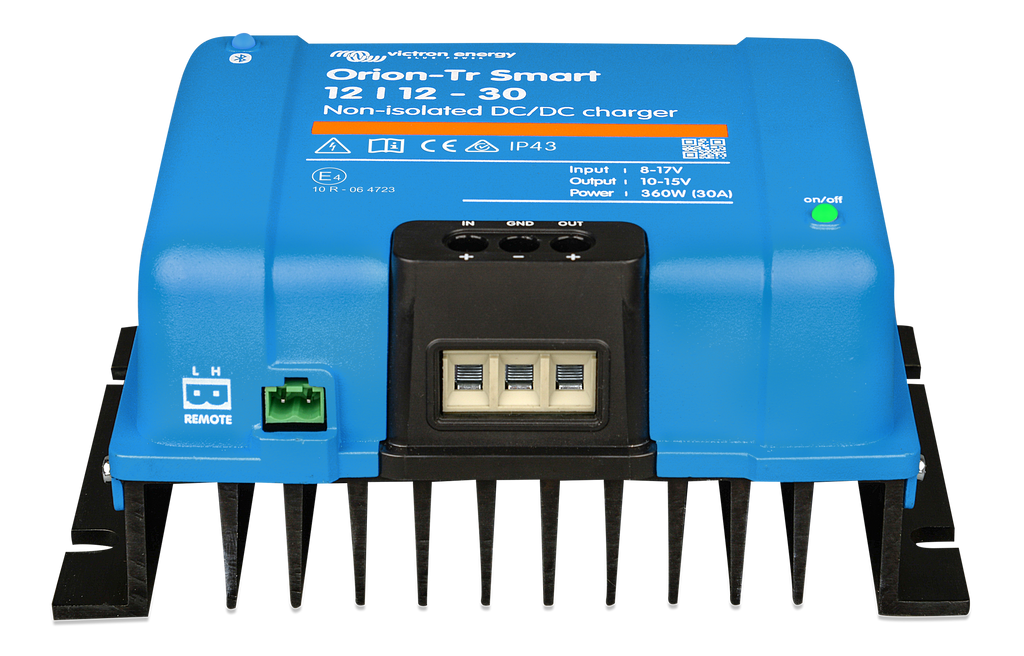

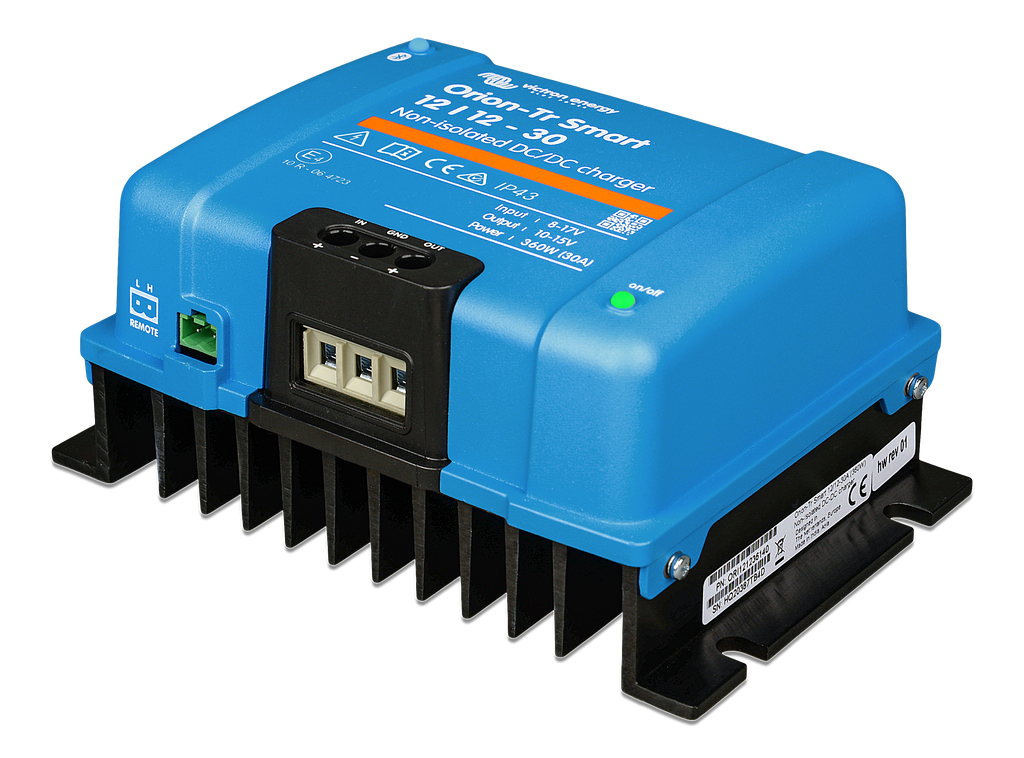

Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger
£179.00
The tried-and-tested way to charge your leisure battery from the engine. The Orion-Tr Smart 12/12-30A works with smart alternators, charges any battery type including lithium, and is fully configurable over Bluetooth.
Key features
- 30A continuous (40A for 10 seconds)
- Smart alternator compatible (Euro 5, 6, 6+)
- Built-in Bluetooth: set up and monitor via the VictronConnect app
- Adaptive 3-stage charging, fully programmable for all battery types
- Engine-running detection in software for simpler wiring
- Can run as a fixed-voltage DC-DC converter; units can be paralleled
- Short-circuit and over-temperature protection; remote on/off
Specifications
| Part number | ORI121236140 |
| Input voltage | 10–17V |
| Output voltage range | 10–15V |
| Continuous output current | 30A (up to 40°C) |
| Output power 25 / 40°C | 430 / 360W |
| Efficiency | 87% |
| Operating temperature | -20 to +55°C |
| Connections | Screw terminals, max. 16mm² |
| Protection | IP43 (terminals facing down) |
| Dimensions | 130 × 185 × 80mm |
