Victron Cerbo GX MK2 System Monitor & Controller
£189.00
Skip to product information

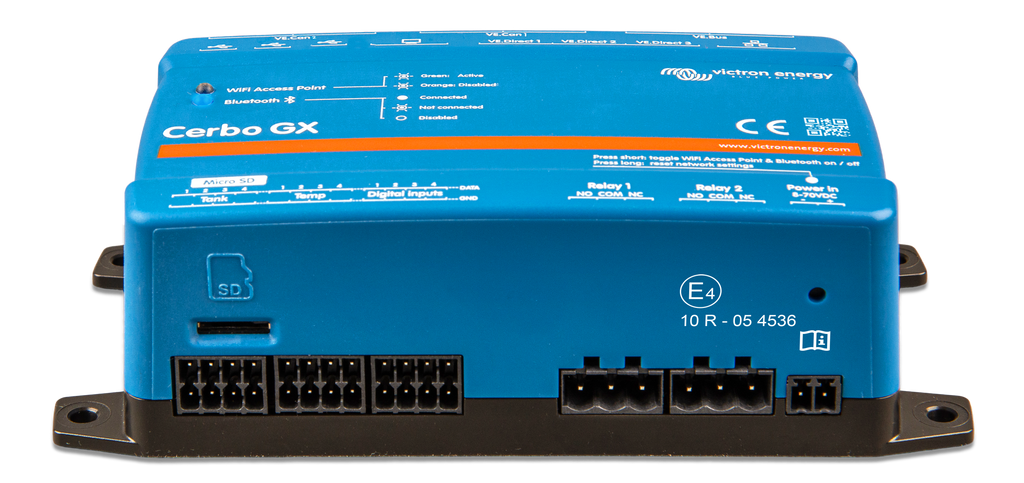

Victron Cerbo GX MK2 System Monitor & Controller
£189.00
The brain of a Victron system. The Cerbo GX MK2 connects your MultiPlus, SmartSolar, Orion, SmartShunt and battery together, so you can see and control everything in one place: on a GX Touch screen, in the VictronConnect app, or remotely from anywhere through Victron's free VRM portal.
Key features
- Links all your Victron kit for system-wide monitoring and control
- Remote monitoring and settings via the free VRM portal (Wi-Fi or Ethernet)
- Built-in Bluetooth for initial setup
- Enables DVCC, so chargers follow your lithium battery's instructions

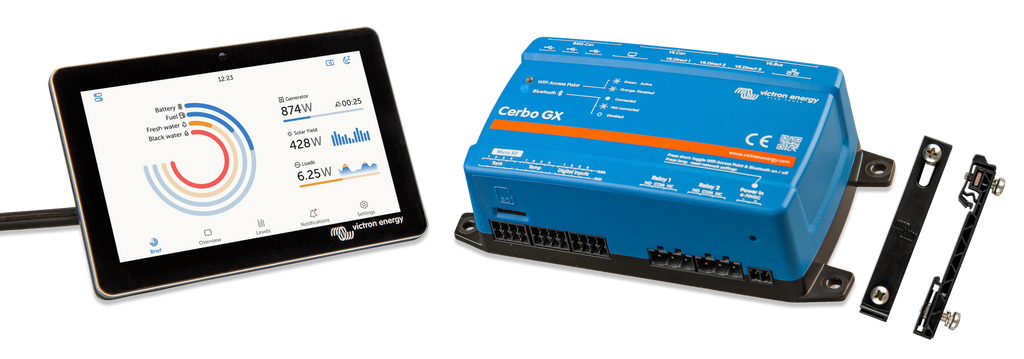

- Connects to the GX Touch 50/70 display (sold separately)

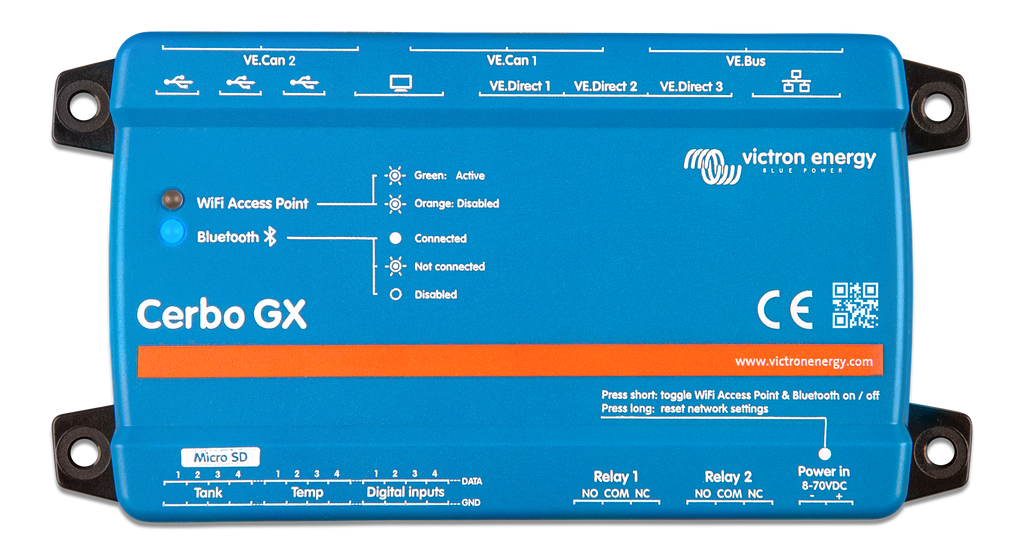

- Tank level, temperature and digital inputs, plus relays for generator start and alarms
Specifications
| Part number | BPP900451100 |
| Supply voltage | 8–70V DC |
| VE.Direct ports | 3 (isolated) |
| VE.Bus | 2 × RJ45 (isolated) |
| VE.Can | 2 (one isolated) |
| Mounting | Surface, or DIN rail with adaptor |
| Operating temperature | -20 to +50°C |
| Dimensions | 78 × 154 × 48mm |
Connecting a MultiPlus needs an RJ45 cable, and VE.Direct devices need VE.Direct cables, both sold separately.
