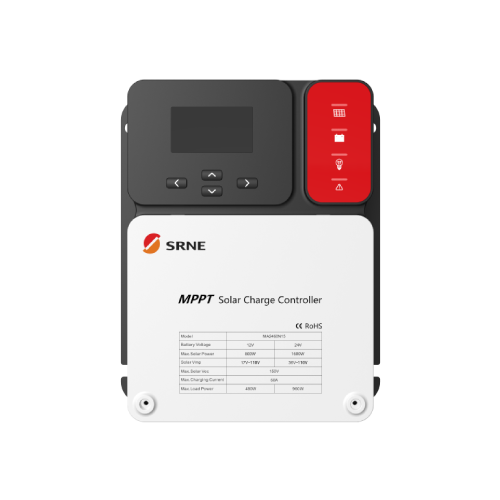

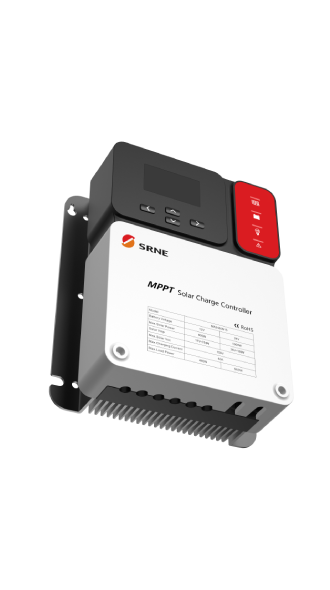

SRNE MA2440N15 MPPT Solar Charge Controller 40A
£177.00
Skip to product information
SRNE MA2440N15 MPPT Solar Charge Controller 40A
£177.00
A serious solar controller for bigger roofs. The SRNE MA2440N15 handles up to 150V of panel input and 40A of charging, making it a great fit for larger van, motorhome and off-grid arrays up to around 1kW.
Key features
- 40A charge and 40A load capacity
- High 150V PV input for flexible panel wiring
- ≥99% MPPT tracking efficiency
- 12V / 24V auto-recognition
- Lithium, AGM, GEL and lead-acid battery profiles
- Fanless cooling with comprehensive protection
- RS-485, TTL and optional CAN (RV-C) communication
Specifications
| Specification | Details |
|---|---|
| Model | MA2440N15 |
| System Voltage | 12 V / 24 V (auto) |
| Rated Charging Current | 40 A |
| Rated Load Current | 40 A |
| Max PV Open-Circuit Voltage | 150 V DC |
| Max PV Input Power | 520 W (12 V) / 1,040 W (24 V) |
| MPPT Tracking Efficiency | ≥ 99% |
| Conversion Efficiency | Up to 98% |
| Quiescent Consumption | ≤ 40 mA |
| Protection Level | IP32 |
| Operating Temperature | −35 °C ~ +65 °C |
| Dimensions | 260 × 216 × 83.2 mm |
| Weight | Approx. 2.3 kg |
